1. Overview of Equipment and Application Fields

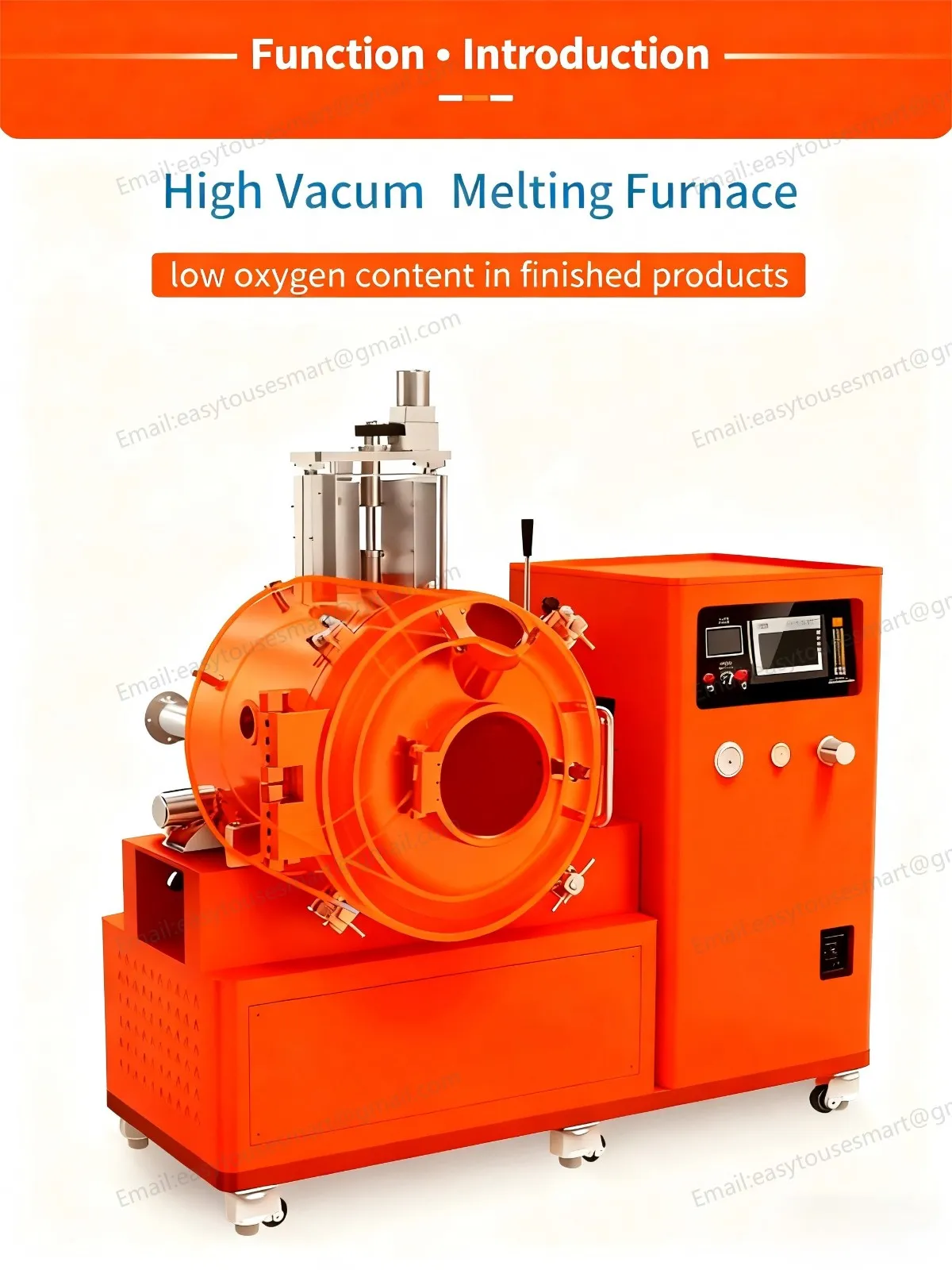

The High Vacuum Induction Furnace H6 is a high-performance, customizable smelting system designed for experimental and small-batch production applications. Specifically engineered to address critical issues in traditional smelting processes—including oxidation inclusions, compositional segregation, and insufficient density—this equipment utilizes two core technologies: high-vacuum induction melting combined with physical mechanical stirring and vacuum secondary feeding. These integrated methods ensure the ultimate purity, uniformity, and density of molten metal. It is particularly suitable for producing high-performance materials such as precious metals (gold, silver), non-ferrous metals (copper), ferrous metals (iron), and various specialty alloys.

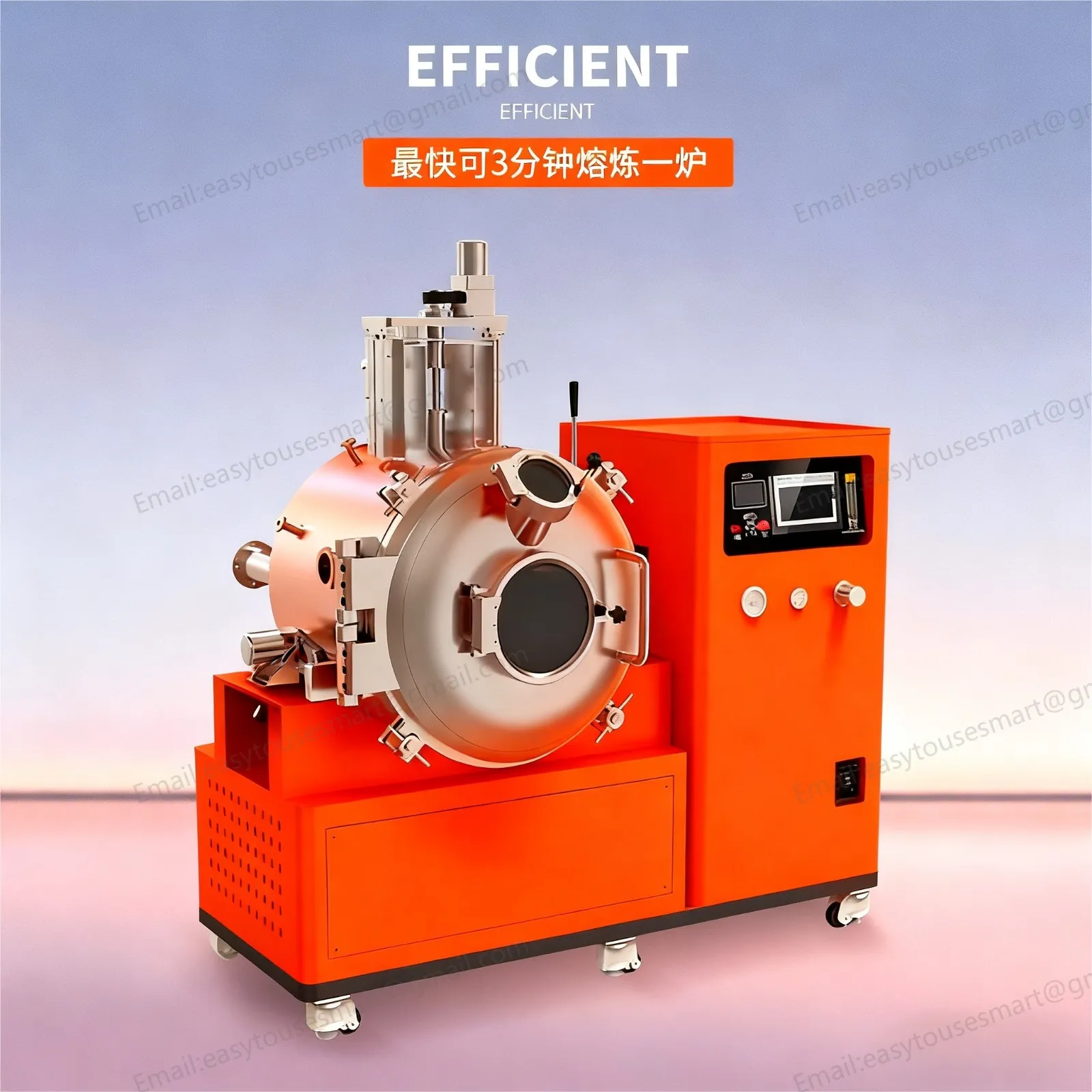

The H6 system not only inherits the traditional advantages of induction melting—rapid temperature rise and high thermal efficiency—but also achieves a qualitative leap in process performance through innovative functional integration. Its physical stirring function effectively prevents stratification of metal elements with different densities during melting, ensuring microscopic homogeneity of alloy composition. The vacuum secondary feeding system allows the addition of easily oxidizable elements without compromising the vacuum environment, completely eliminating oxidation-induced burnout. Equipped with an advanced PLC control system, the device features intuitive operation and robust 24-hour continuous operation capability, significantly enhancing research efficiency and small-batch production capacity. Its multiple safety protection mechanisms provide solid safeguards for both laboratory and production environments.

Widespread application areas:

· Research institutes and university laboratories: R&D of new alloy materials, study of metal physical properties, preparation of high-purity samples.

· New energy industry: high performance battery electrode materials, hydrogen storage alloys, melting and modification of magnetic materials.

· Aerospace: Prototype manufacturing and testing of critical components including high-temperature alloys, lightweight high-strength aluminum alloys, and titanium alloys.

· The semiconductor industry: preparation of high purity metal targets and special electronic packaging materials.

· Jewelry: High-precision smelting and purification of precious metals including K gold, platinum, and silver, ensuring flawless color and oxidation-free quality.

· Nonferrous metal smelting: homogenization smelting and pilot production of complex composition alloys such as copper alloy and nickel-based alloy.

2. Core Functional Highlights

High Vacuum Environment Smelting-Excellence Density

o Ultra-pure environment: The entire melting process is conducted under high vacuum conditions, effectively removing harmful gases such as hydrogen, nitrogen, and oxygen from the melt to prevent porosity formation.

o High-density finished product: Significantly eliminates internal porosity in castings, dramatically improves the density and compactness of the finished product, yielding metal materials with superior mechanical properties.

Vacuum Secondary Feeding Technology-Full Process Anti-Oxidation

o Aerobic-free precision feeding: The innovative vacuum secondary charging chamber design enables users to continuously add highly reactive elements (e.g., rare earths, magnesium, aluminum) or perform precise compositional adjustments to the melt while maintaining high vacuum conditions in the main smelting chamber.

o Zero oxidation loss: The entire feeding process requires no vacuum break, completely isolates air to prevent oxidation and burn-off of precious alloy elements, improves raw material utilization, and ensures precise control of the chemical composition of the final product.

o Process flexibility: Supports multi-stage feeding process to meet the strict requirements of complex alloy formulations on feeding sequence and temperature.

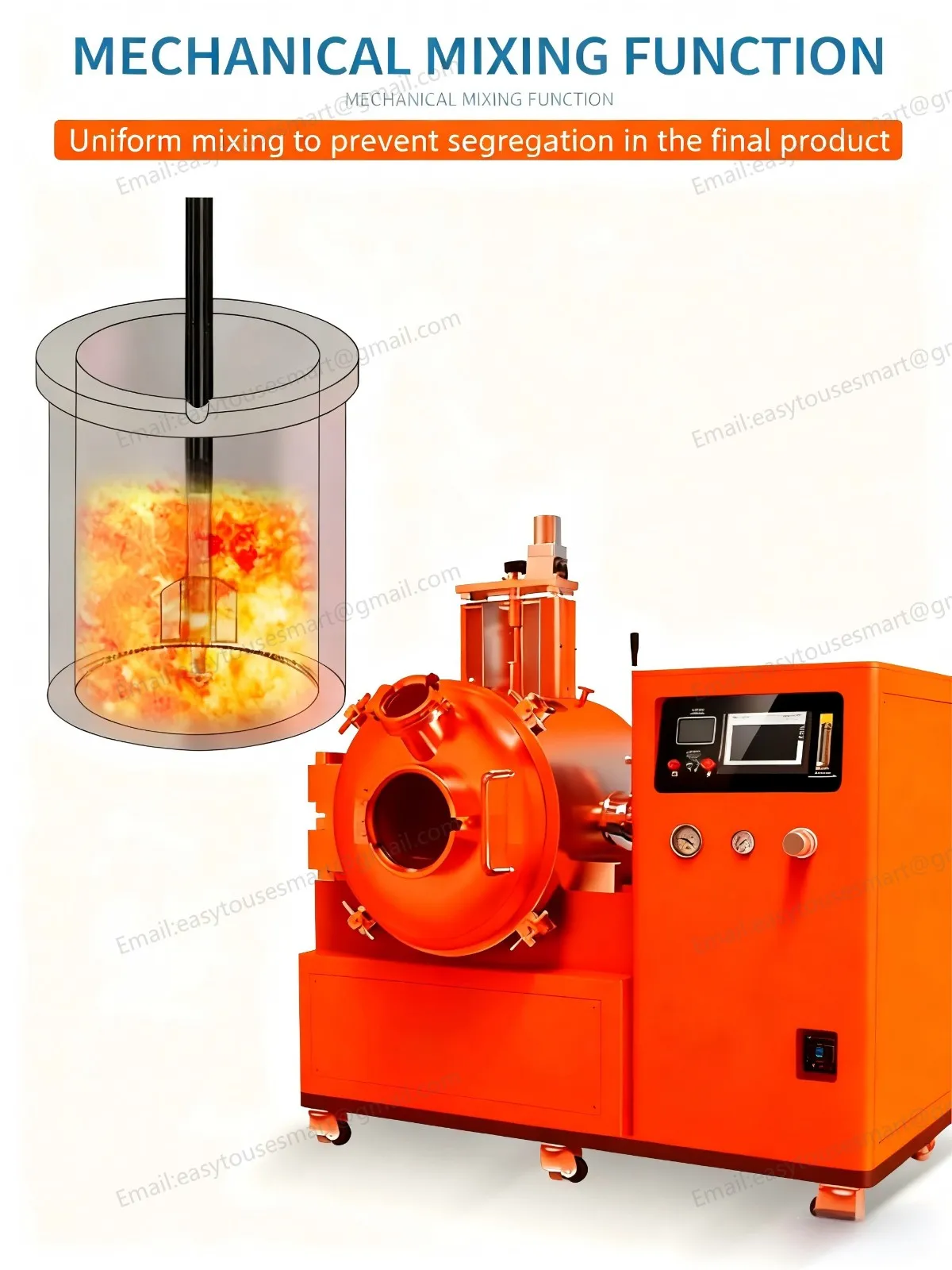

Mechanical stirring function-ultra-uniform composition

o Forced convection mixing: The system is equipped with a high-precision physical-mechanical stirring device that provides continuous and stable physical stirring of the molten metal during the smelting process.

o Eliminate compositional segregation: Effectively overcome gravity segregation caused by differences in metal specific gravity, ensuring uniform distribution of alloy elements throughout the melt and eliminating localized enrichment or depletion.

o Enhance color consistency: Achieve high uniformity in the chemical composition, microstructure, and physical properties of the final castings, significantly improving product pass rates, particularly for complex multi-component alloys.

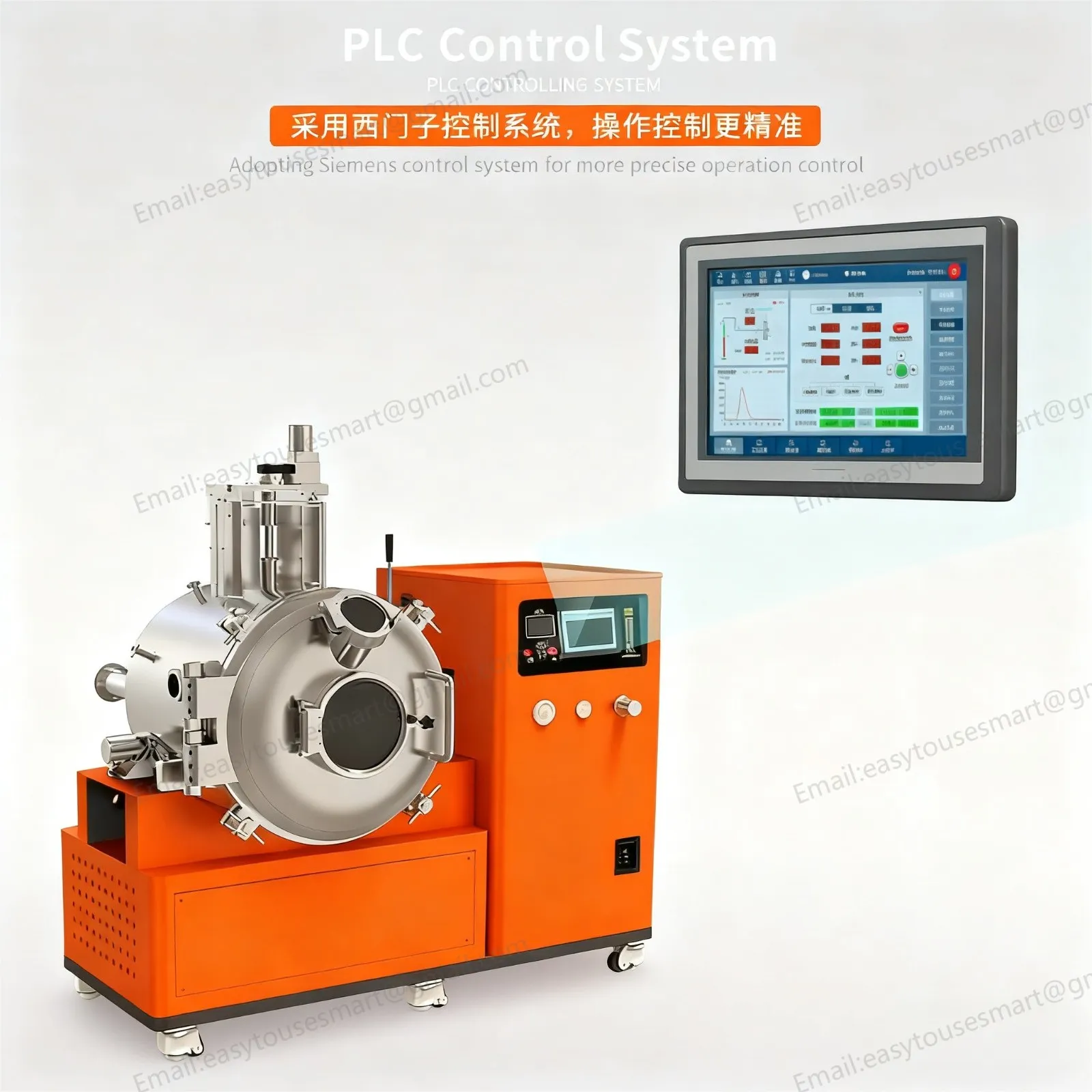

Intelligent PLC Control and 24-hour Continuous Operation

o User-friendly operation: Equipped with an industrial-grade PLC control system featuring a humanized interface, users can intuitively set and monitor critical parameters such as melting temperature, stirring speed, vacuum level, and feeding time. The simplified operational workflow reduces human error.

o Efficient continuous production: The equipment features a robust structural design and high-efficiency cooling system, enabling 24/7 uninterrupted operation under continuous load. This significantly boosts production capacity, meeting the demands of high-intensity experiments or small-batch manufacturing.

o Data traceability: The system automatically records the melting curve and process parameters, facilitating experimental analysis and process optimization.

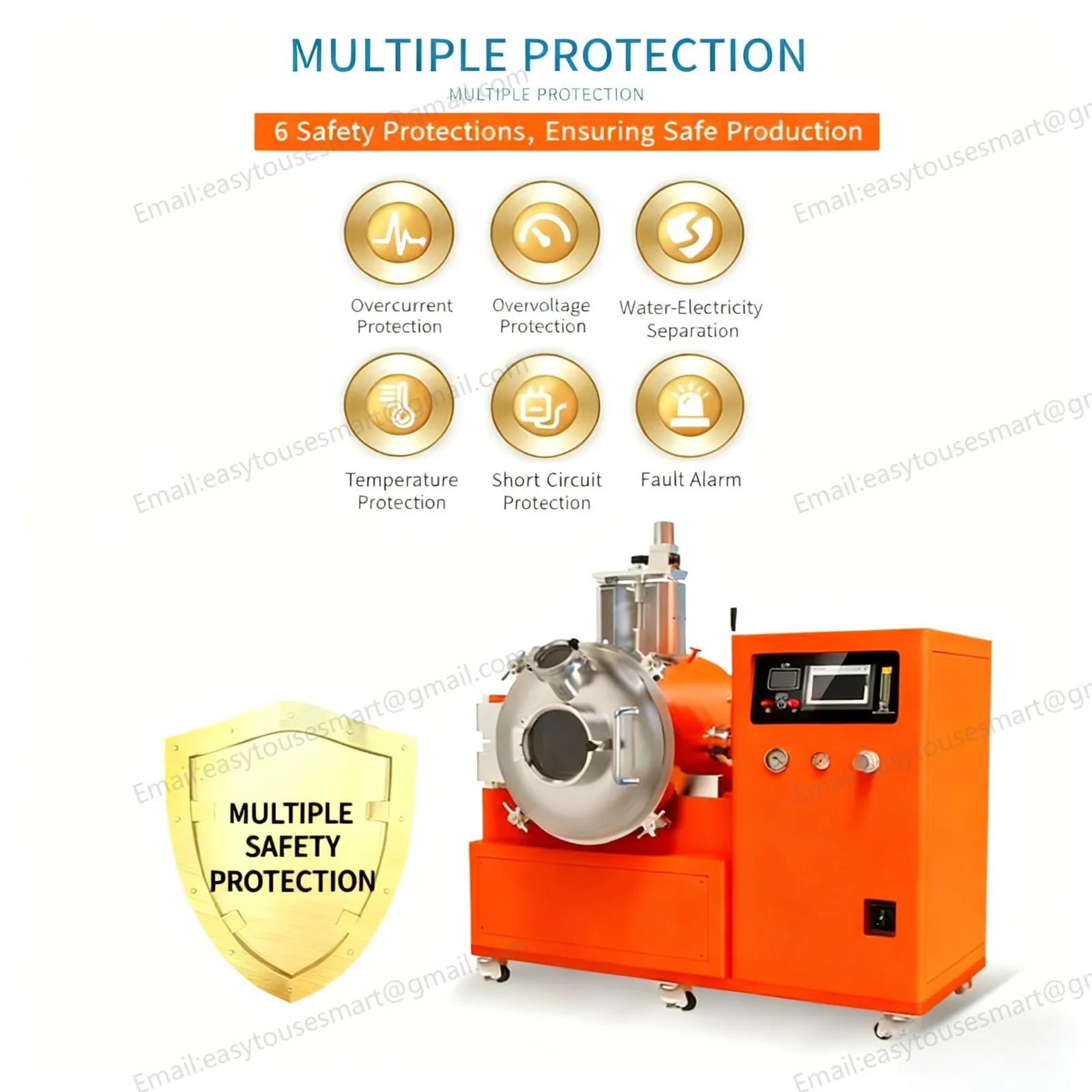

Multi-layer Security Protection-Use with Peace of Mind

o Comprehensive protection: The device features multiple built-in safety mechanisms, including hydraulic pressure protection, overheat protection, overcurrent protection, vacuum interlock protection, and emergency stop buttons.

o Safety and reliability: The system automatically cuts power and triggers an alarm when detecting abnormal cooling water, temperature exceedance, excessive current, or vacuum leakage, ensuring equipment and operator safety for worry-free operation.

Highly customizable services

o Customizable on demand: Tailor capacity, vacuum level, mixing method, number of feed hoppers, and control system functions to meet specific requirements across industries and processes.

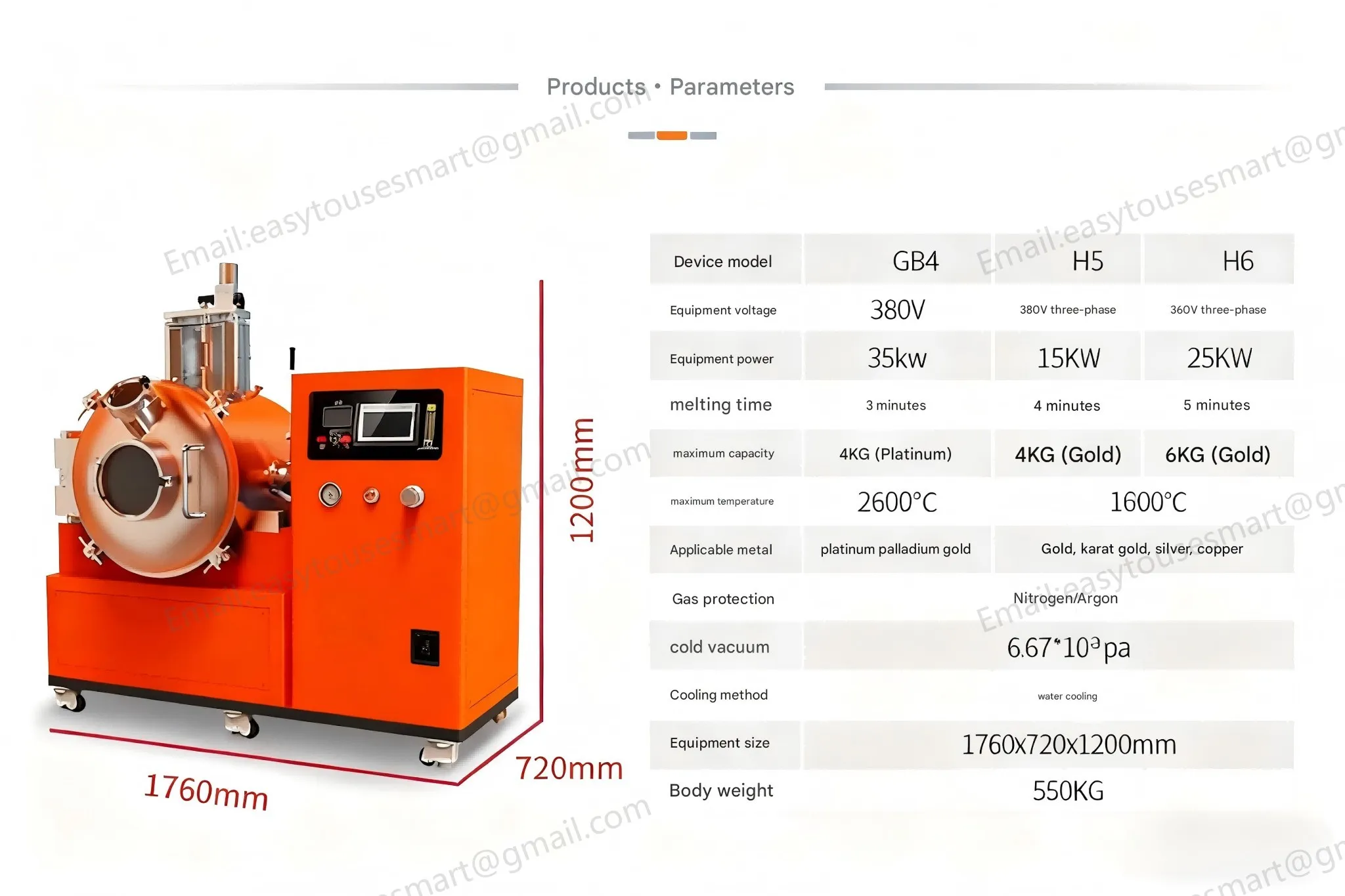

3. Technical Parameters and Specifications

4. Detailed Explanation of Typical Application Scenarios

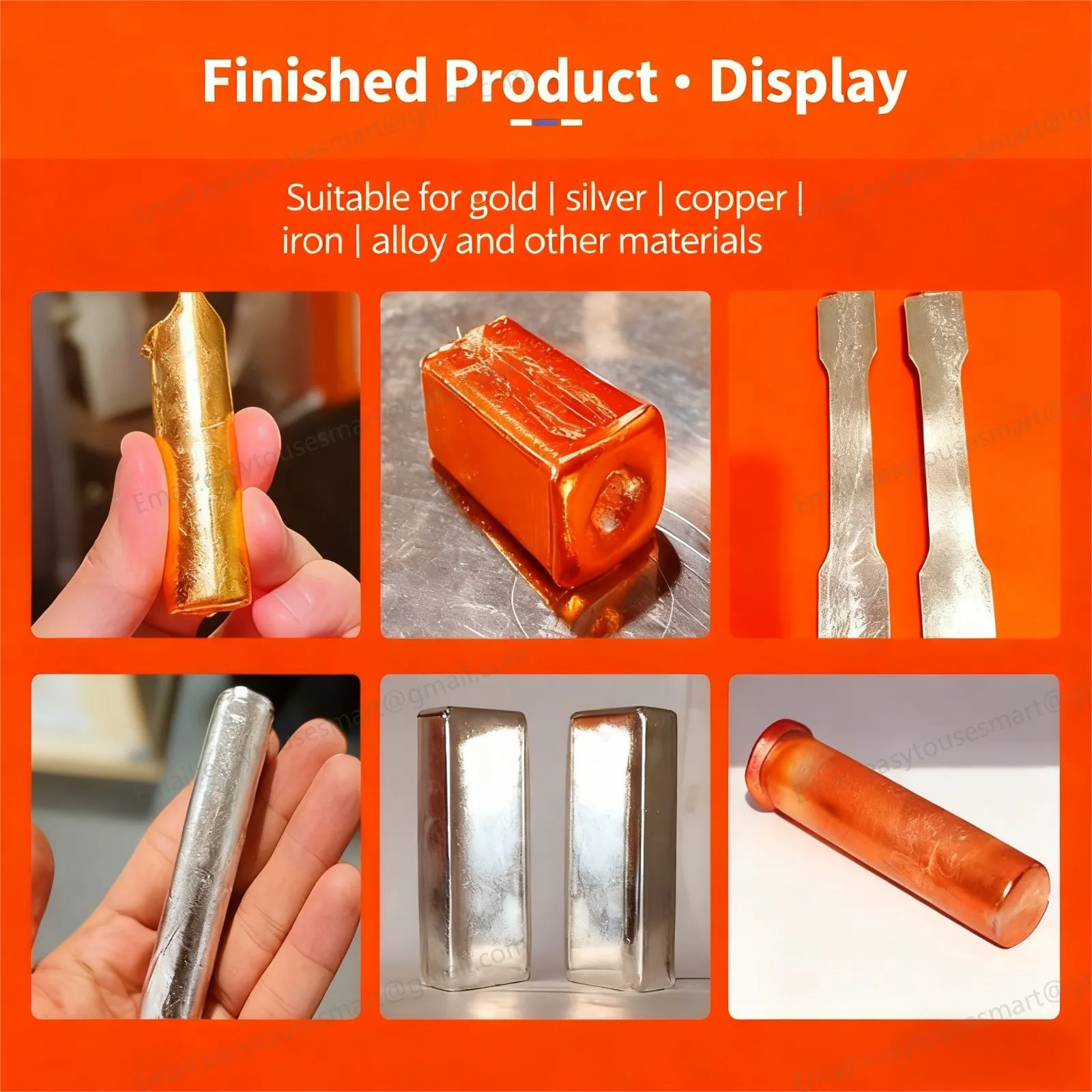

High-end jewelry manufacturing:

o K Gold Homogenization Smelting: Utilizing physical stirring technology, this process resolves density segregation in multi-element alloys (gold, silver, copper, zinc), ensuring consistent coloration (e.g., 18K,24K) and uniform hue across all batches of K Gold jewelry, with no color variations.

o Precious metal oxidation-free smelting: In high vacuum, pure gold or pure silver is melted with secondary feeding to obtain gold or silver ingots with bright surface, no internal pores, and extremely high density, thereby reducing the oxidation loss of precious metals.

New Material Development and University Experiments:

o Special alloy preparation: When developing new aluminum or magnesium alloys containing easily oxidizable elements such as rare earth and magnesium, the vacuum secondary feeding function was utilized to precisely control the addition timing, thereby avoiding element burn-off and successfully preparing experimental samples with precise composition.

o High purity metal research: High purity copper or iron is melted in high vacuum environment to remove gas impurities, and the effect of vacuum degree on metal microstructure and mechanical properties is studied.

New Energy and Aerospace:

o Hydrogen storage alloy melting: To prepare lanthanum-nickel series and other hydrogen storage alloys, physical stirring is employed to ensure uniform distribution of elements, thereby enhancing the consistency of hydrogen absorption and desorption performance.

o High temperature alloy prototype manufacturing: to provide high density, no inclusion master alloy ingot for small batch trial production of aero-engine blade material, and to verify the feasibility of new material process.

Semiconductors and electronic materials:

o The preparation of the target alloy: high purity copper alloy or silver alloy is melted as the raw material of the sputtering target, ensuring the extremely low gas content and extremely high density, and guaranteeing the quality of the subsequent coating.

o Electronic packaging materials: Fabricate high thermal conductivity and low thermal expansion coefficient electronic packaging alloys. The stirring function ensures uniform distribution of all phases in the composite material, thereby enhancing thermal management performance.

5. Why choose the H6 high-vacuum induction melting furnace?

The H6 High Vacuum Induction Furnace redefines alloy smelting standards in laboratory and small-scale production through three core technologies: high vacuum environment, physical mechanical stirring, and vacuum secondary feeding. It not only resolves the persistent challenges of component segregation and oxidation loss in traditional smelting processes, but also delivers superior density and purity in finished products. The PLC intelligent control system simplifies complex smelting operations, while its 24/7 continuous operation significantly enhances equipment efficiency and output ratio. Most importantly, H6 offers highly customizable services to precisely meet diverse process requirements. Whether for jewelers pursuing exquisite finishes or researchers pushing material performance limits, H6 stands as a trusted partner. Its multi-layered safety protection design provides robust safeguards for laboratory environments. Choosing H6 means selecting a high-quality, efficient, safe, and flexible smelting solution that drives continuous breakthroughs in metal material research and application.
